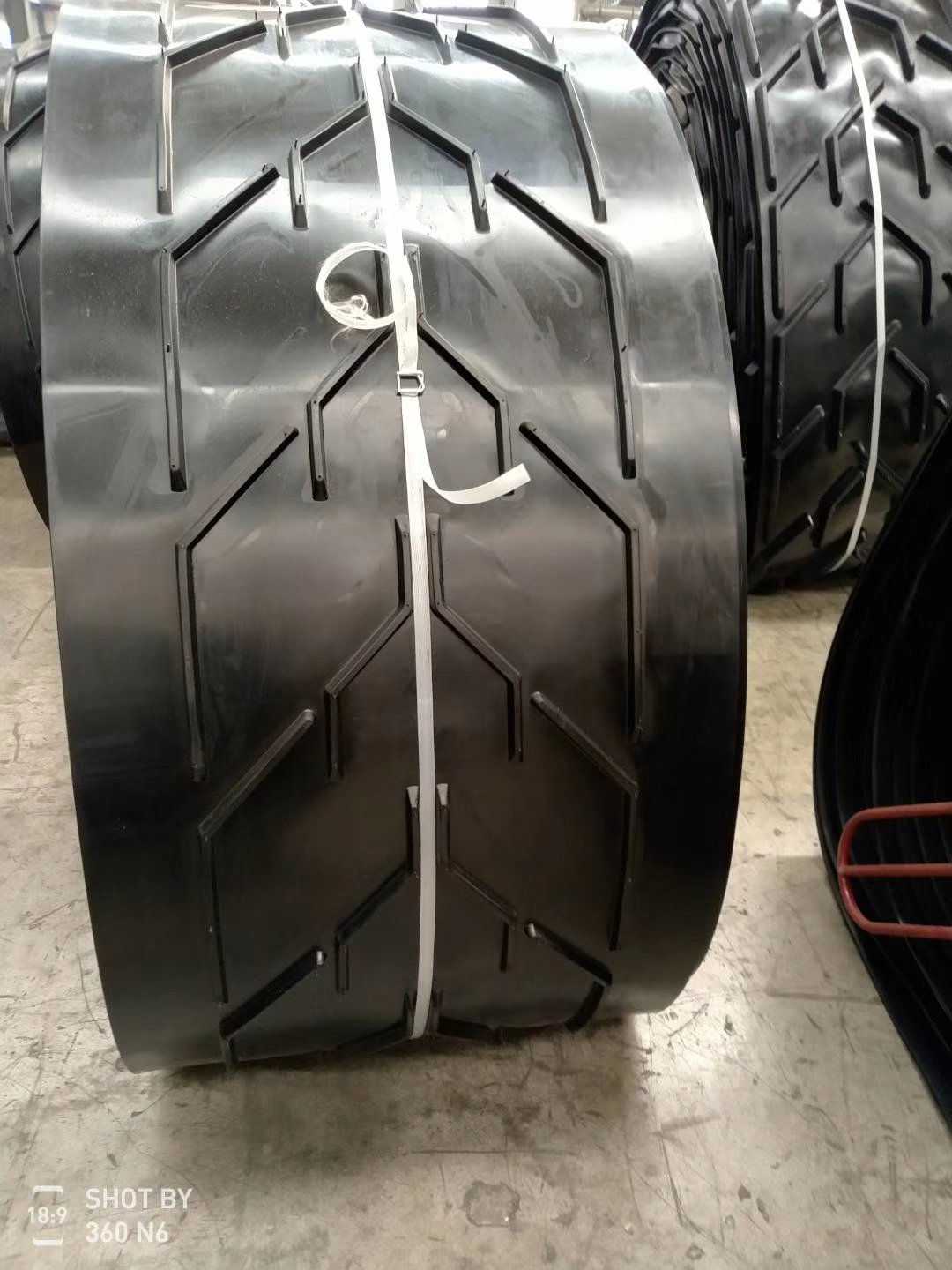

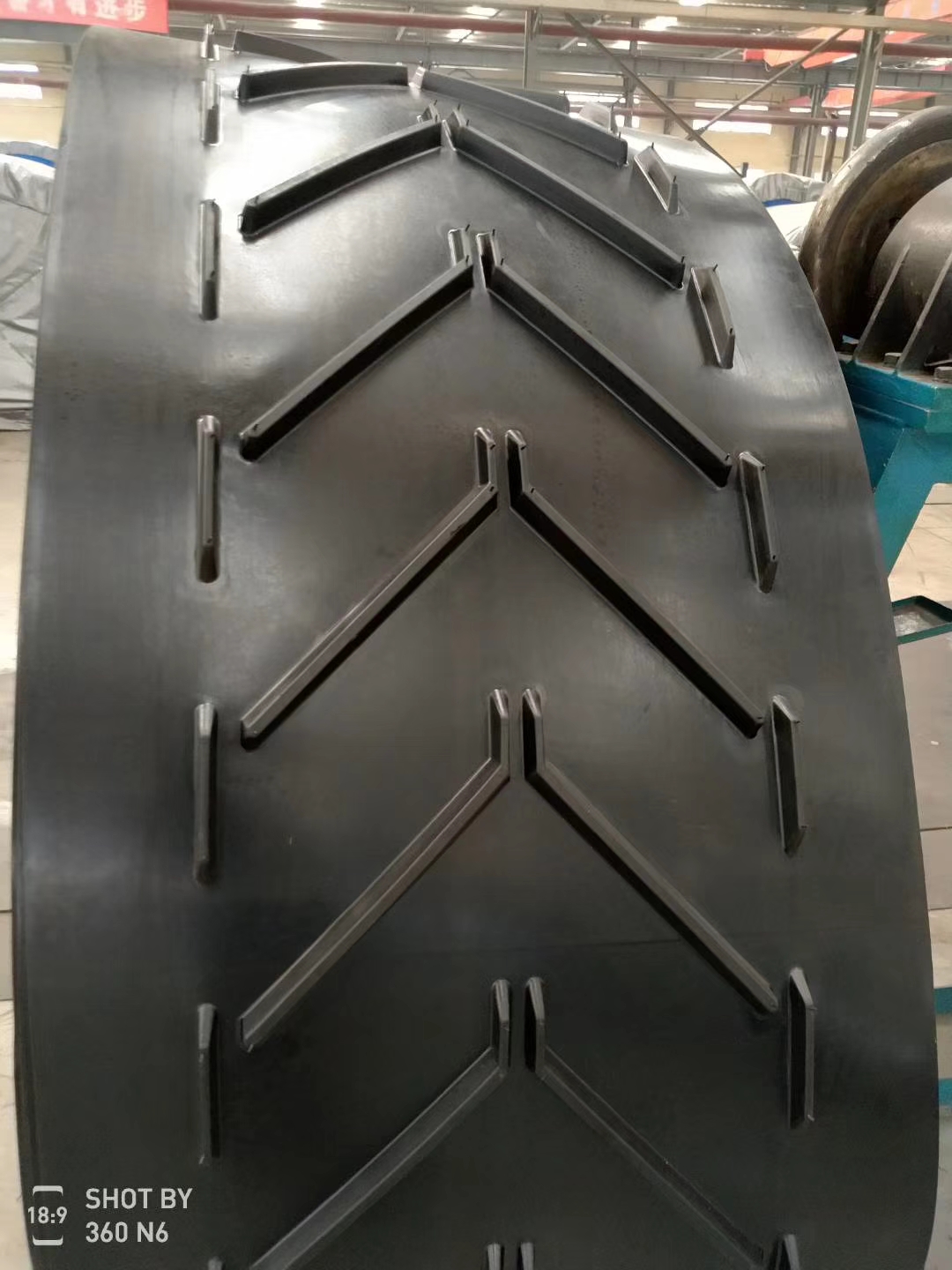

Chevron belts with chevron moulded and directly integrated in the cover of the conveyor belt, in order to increase the friction between the belt and material conveyed. Chevron conveyor belt is suitable for conveying loose, bulky or bagged materials on inclined surface at angles of less than 40 degrees.
Features: Anti-slip; Cleats and top cover rubber are vulcanized integrally; Cleat pattern, angle and pitch are designed elaborately.
Selections: Selection of a type and height of cleats depends on the material to be conveyed and the angle of inclination: | Type of material | Material example | Max. angle of inclination |
|---|
| Height of cleats |
|---|
H(mm):
14 | H(mm):
16 | H(mm):
25 | H(mm):
32 | | Powdery | Flour, etc. | 25° | 25° | 28° | 30° | | Loose flowing | Corn, barley, wheat, rye, etc. | 20/25° | 20/25° | 25/30° | 25/30° | | Loose rolling | Gravel, ground stone, etc. | 25° | 25° | 28° | 30° | | Sticky | Wet sand, ash, wet loam, etc. | 30° | 30/35° | 35/40° | 40/45° | | Packed | Sacks, paper sacks, etc. | 30/35° | 30/35° | 35/40° | 35/40° |

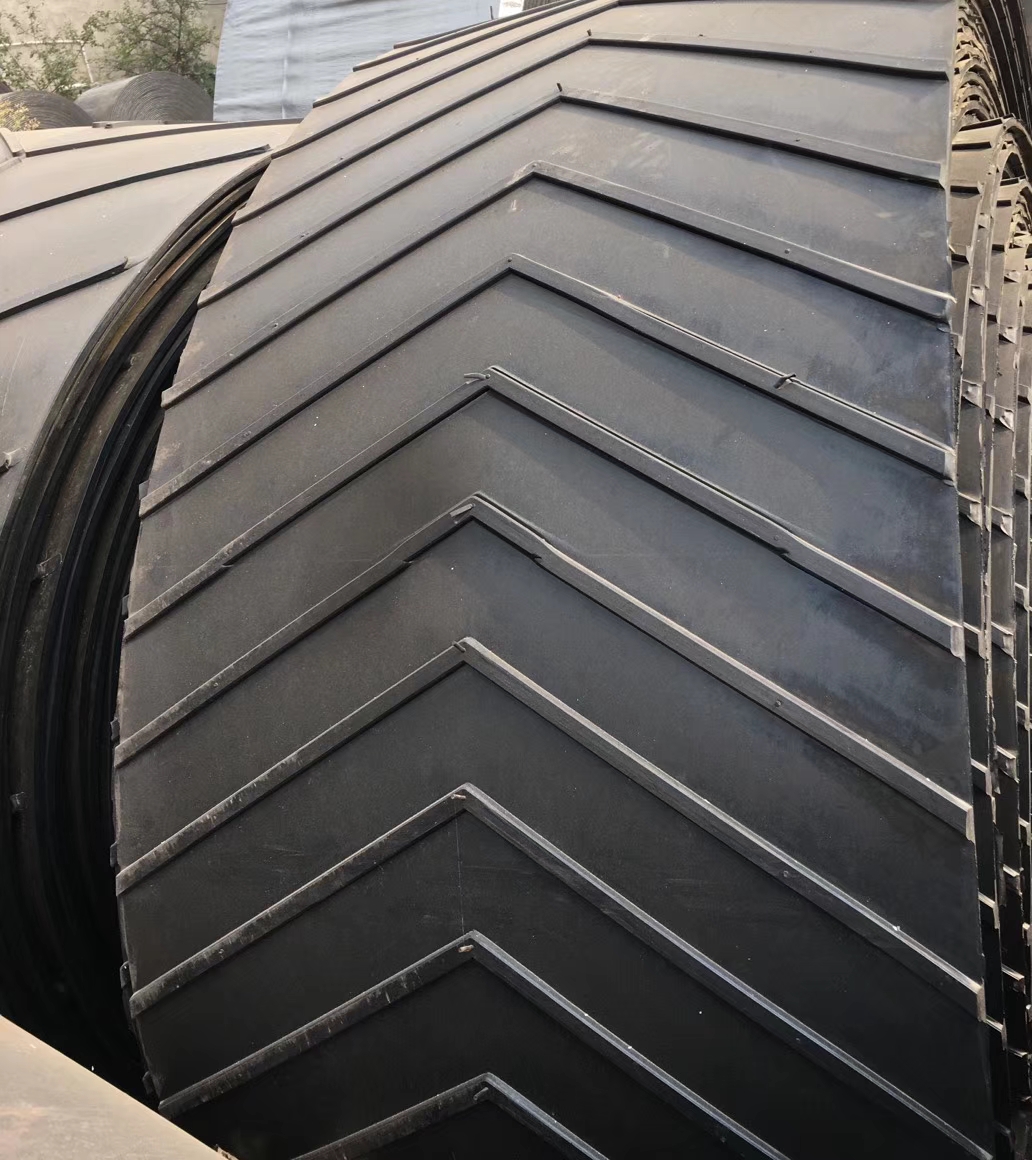

Cleat pattern ranges 1. Conveyor belts with Close V type profiles
2.Conveyor belts with C type profiles
|
