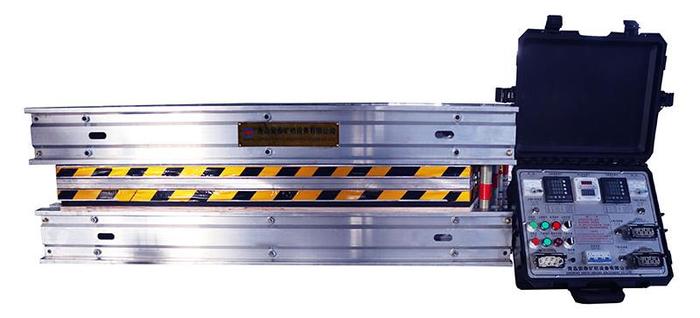

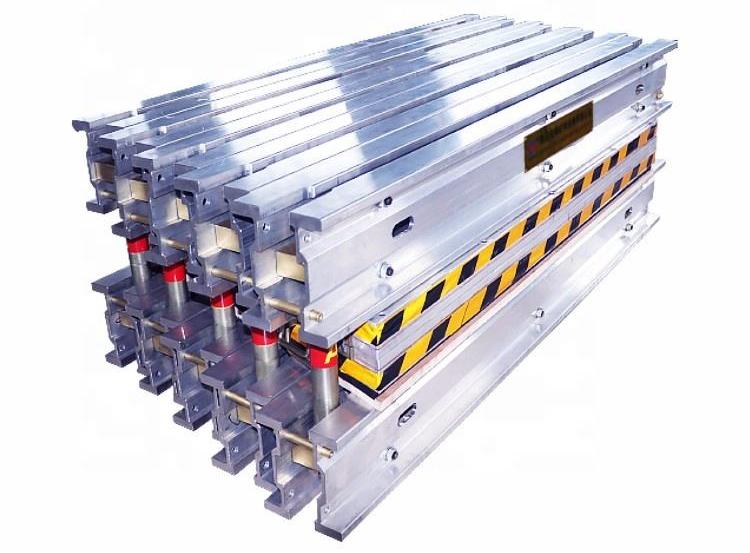

Conveyor Belt Vulcanizing Machine

Application

Water pressure bag (also can use air pressure) Press for 100PSI, 200PSI surface pressure for textile and steel cord belts, Up to 1.8Mpa/2.0Mpa.

100 p.s.i.(7 kg/cm sq.) units mostly suitable for splicing fabric ply belting

200 p.s.i.(14 kg/cm sq.) units usually used to do steel cord conveyor belting

Max Belt width: from 650mm to3000mm

Different heating platen size and combination.

Degree of the heating platen: 22 degree bias angle or 16 degree, 20 degree, rectangle and other degree is optional.

Power Voltage: 380V.   660V.   525V480V.   440V.   415V.   400V or 220V

Vulcanizing temperature:145℃ (adjustable 0~200℃)

Temperature-rising time (from normal temperature to vulcanizing temperature): no more than 25 min, accords to different conditions, actually, normal conditions, is around 20 mins.

Features

1.The electric control box of hot splicing press is made of industrial grade aluminum alloy,small volume and light weight. Three-phase source of power supply.

2.Water press system can supply stable press.

3.Fast heating, steady heating temperature.

4.Equipped with auto electric control,easy to operate.

5. Degree of the heating platen: 22°/17°/ 20° (rectangle and other degree is optional)

6.High pressure water pump, adopted three cylinder plunger pump driven by single-phase machine,with the characteristics of compact structure, small volume, reliable, maintenance friendly.

7.Sturdy heating plate with hydraulic pressure system ensures temperature unifor-

mity, high pressure can reach Max.2.0 MPa ;Heating plate including air or water cooling.

8.Time of heat preservation for vulcanizing could be adjusted according to thickness of the rubber belts;

9.Splicing length of rubber conveyor belt for vulcanizing jointing could be connected together by single or several pieces if necessary;

10.Rubber conveyor belt as well as tension in kilogram required for vulcanizing jointing when ordering products.

11.Users could order spare electric pumps additionally according to requirements.

Model for Choice( or Just me your belt size, belt type)

12.Customization/OEM:Different heating platen size and combination
